5G Lab: Open5GS Install

Installation of Open5gs

Install Open5GS

We are deploying Open5gs as a native Linux daemon service application.

sudo apt update
sudo apt install software-properties-common
sudo add-apt-repository ppa:open5gs/latest
sudo apt update
sudo apt install open5gs

Setup Open5GS

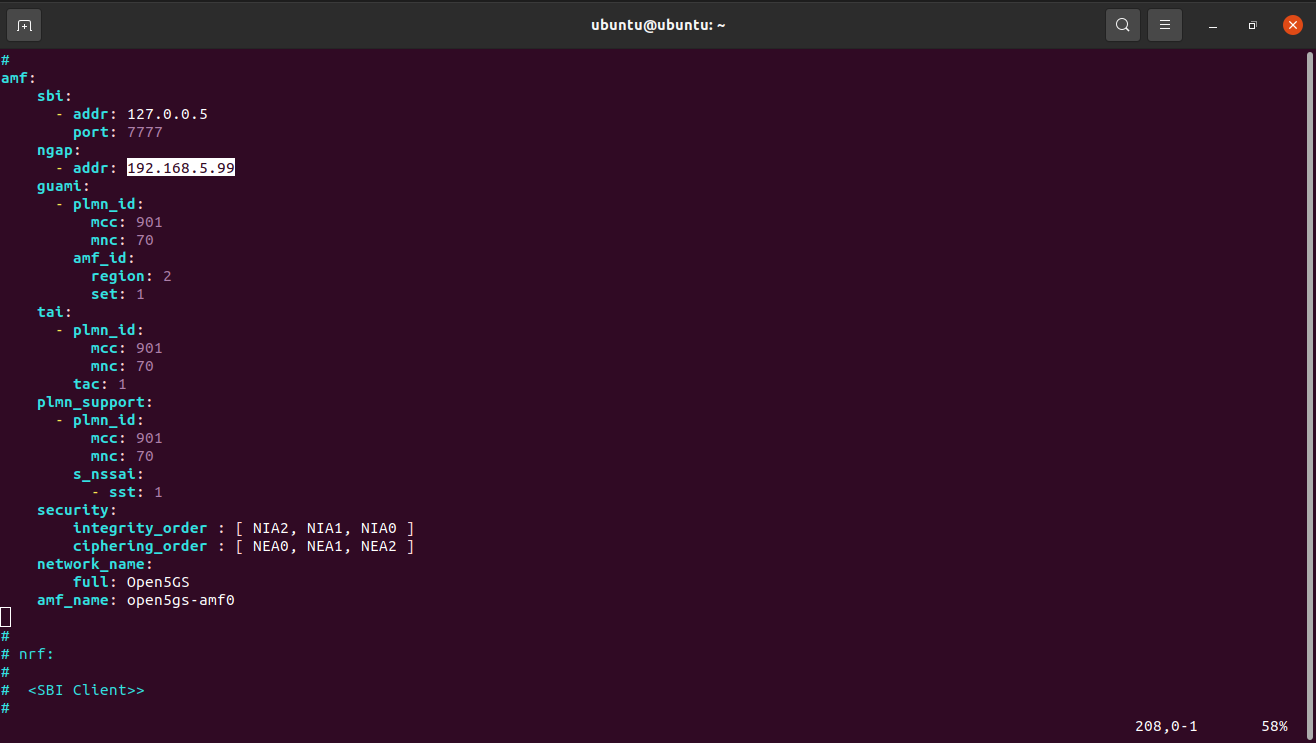

Update the Amf config file loacted at /etc/open5gs/amf.yaml by replacing given ip of ngap address to local eth0 ip. And then restart amf service.

Alternative text

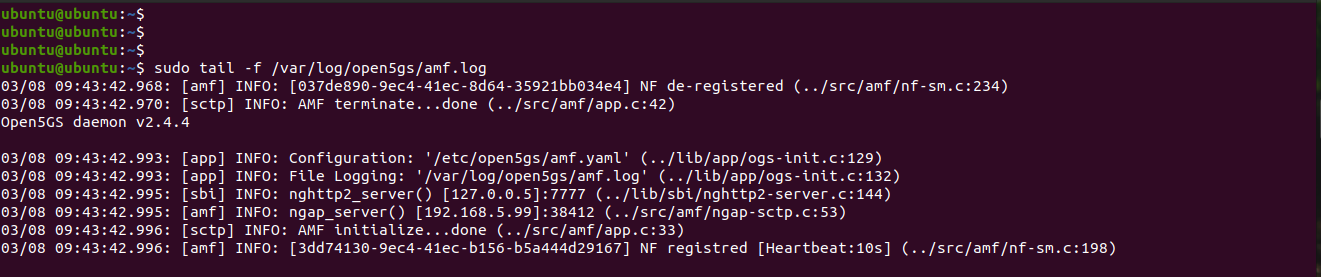

sudo systemctl restart open5gs-amfd
Alternative text

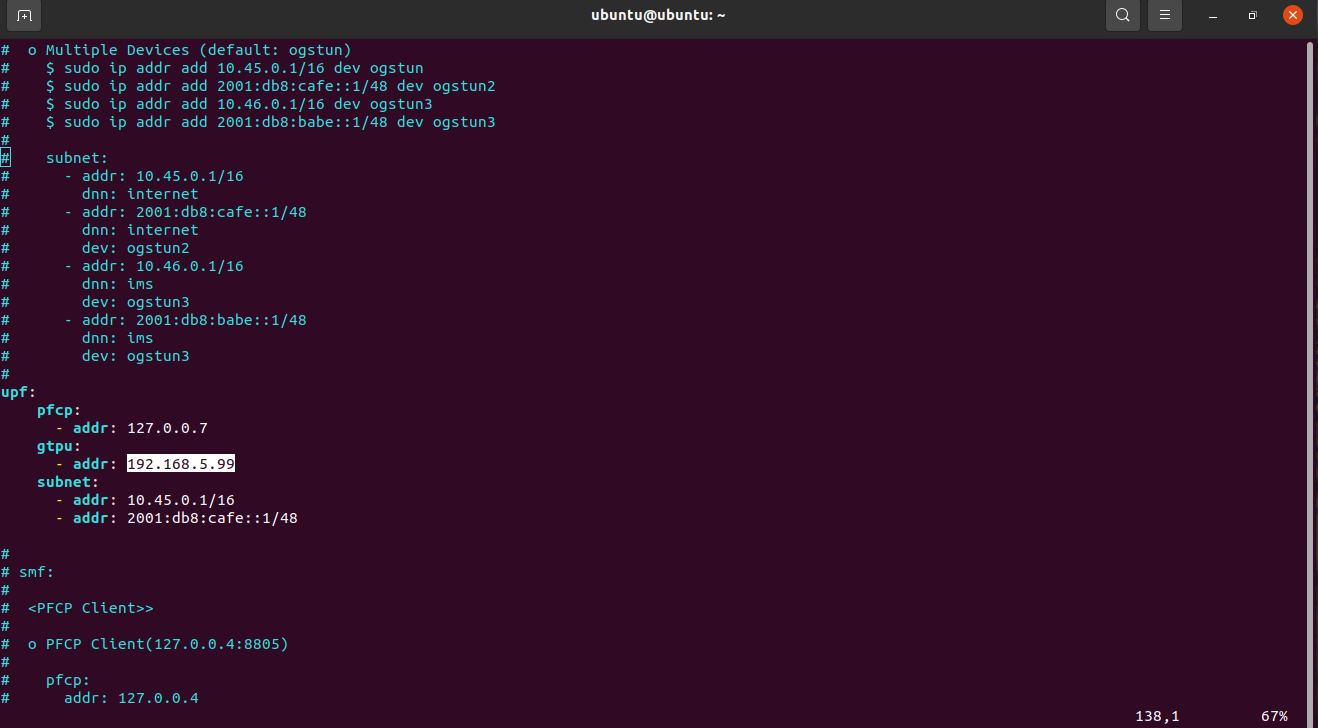

Update the Upf config file loacted at /etc/open5gs/upf.yaml by replacing given ip of ngap address to local eth0 ip. And then restart upf service.

Alternative text

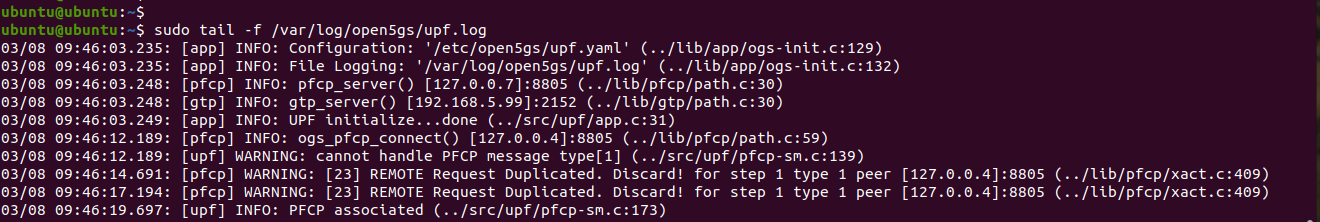

sudo systemctl restart open5gs-upfd
Alternative text

NAT Port Forwarding

In order to bridge between the 5G Core UPF and Internet, we need enable IP forwarding and add a NAT rule to the IP Tables. Following are the NAT port forwarding we have to do. Without this port forwarding the connectivity from 5G Core to internet would not work.

sudo sysctl -w net.ipv4.ip_forward=1
sudo iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE
sudo systemctl stop ufw
sudo iptables -I FORWARD 1 -j ACCEPT

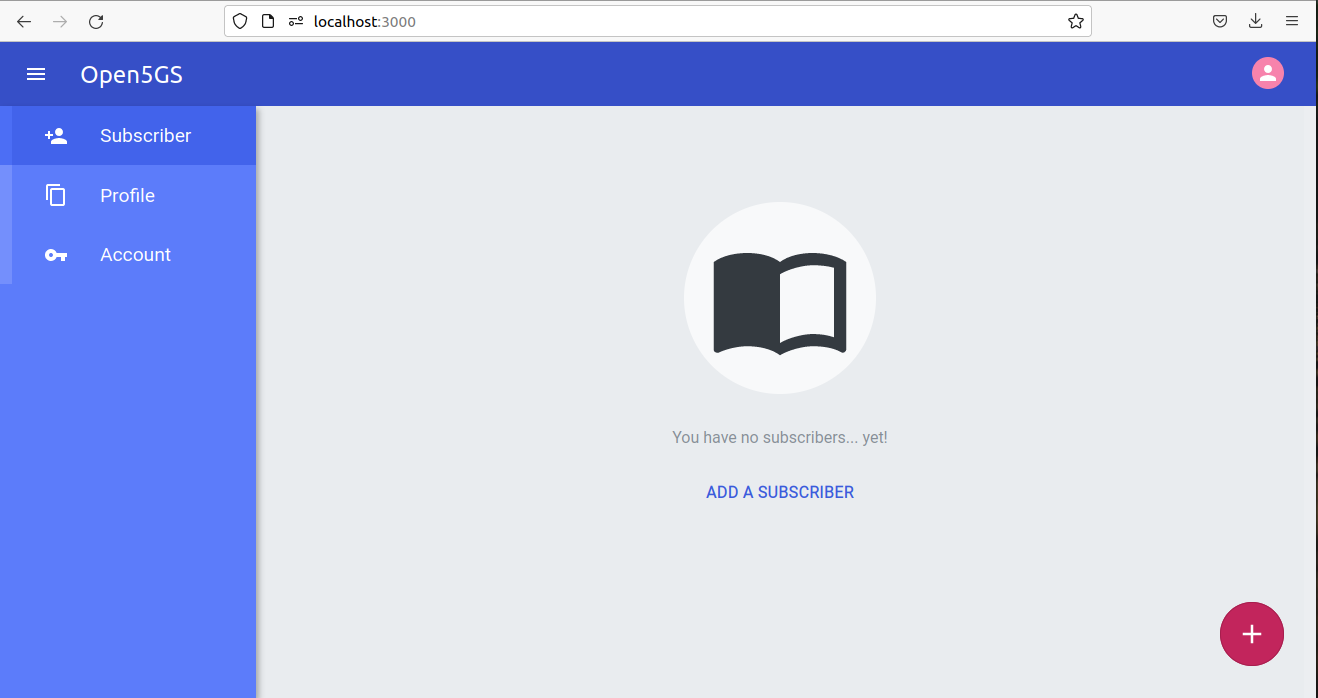

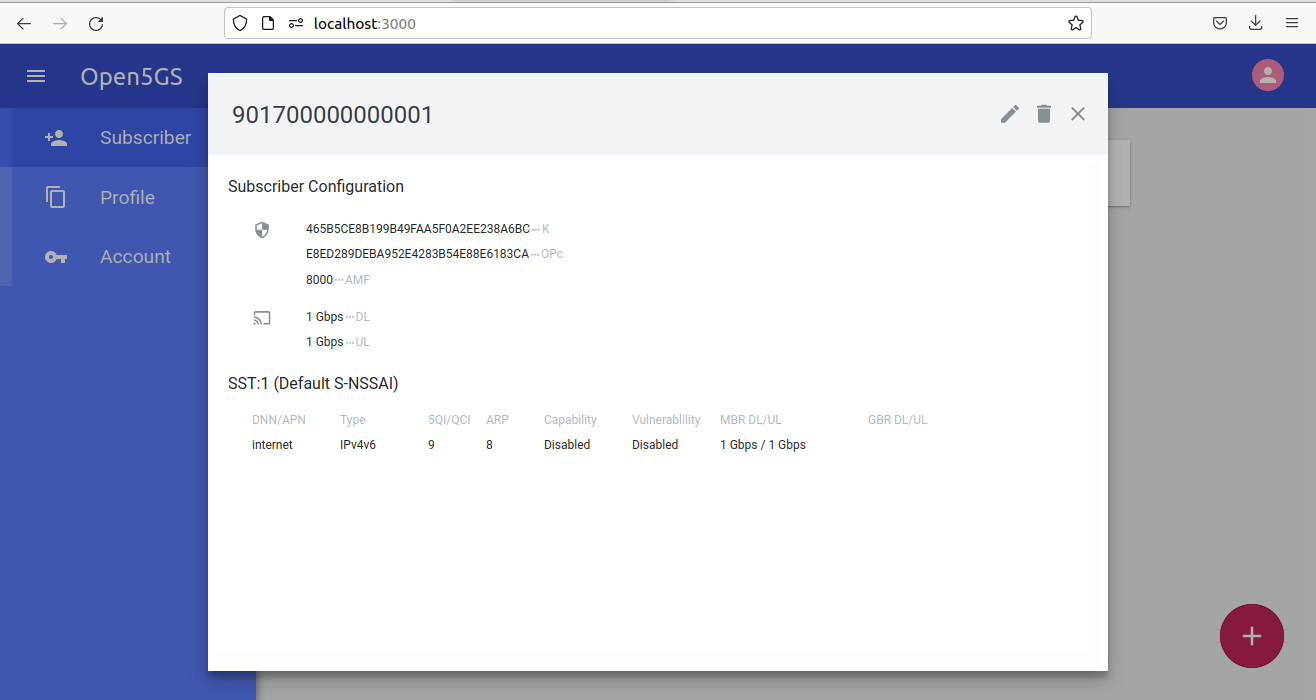

Access Open5gs Dashboard

Now we need to access our open5gs dashboard.

sudo apt update
sudo apt install curl
curl -fsSL https://deb.nodesource.com/setup_14.x | sudo -E bash -
sudo apt install nodejs
git clone https://github.com/open5gs/open5gs.git

# run webui with npm
cd webui
npm ci --no-optional && npm run build
npm run dev --host 0.0.0.0

# the web interface will start on
http://localhost:3000

# run this command if you are on remote serverand want to access dashboard locally
ssh -L localhost:3000:localhost:3000 ubuntu@ip
Alternative text
Alternative text
